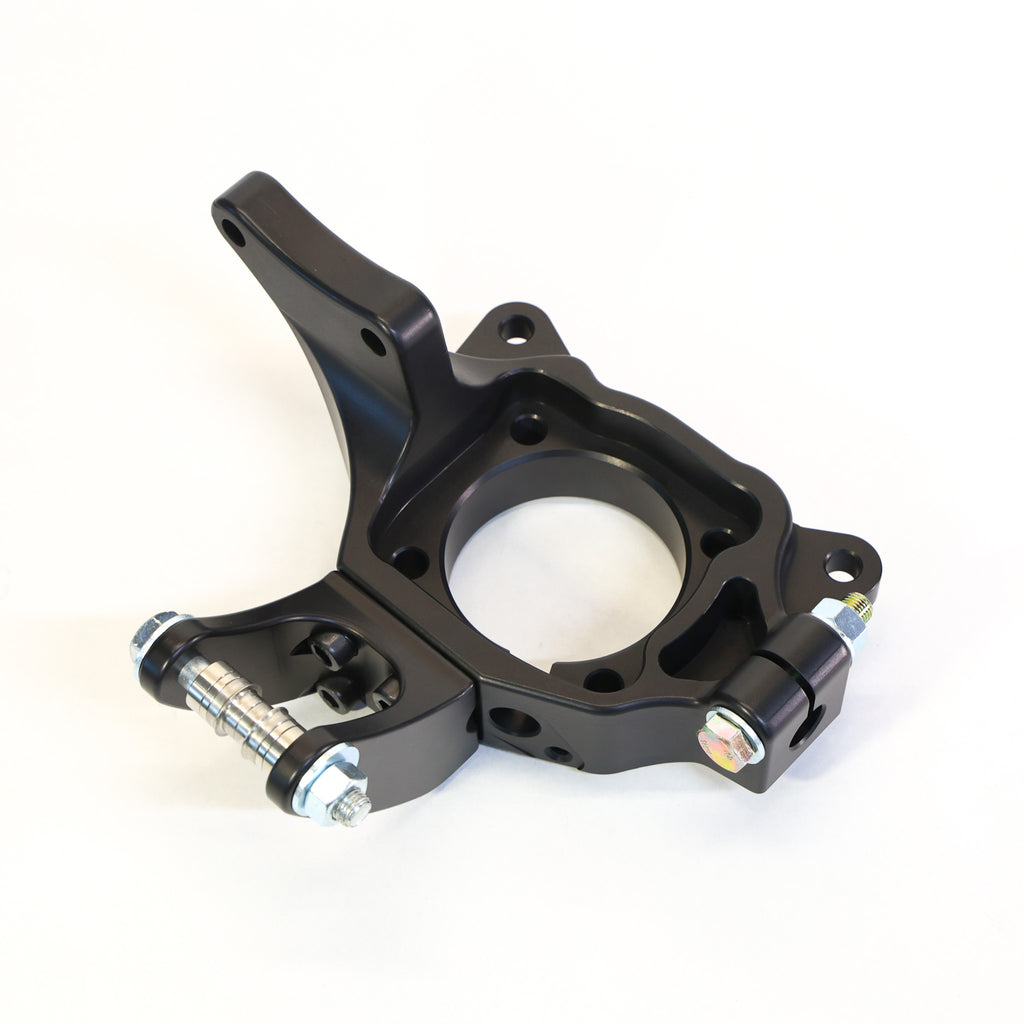

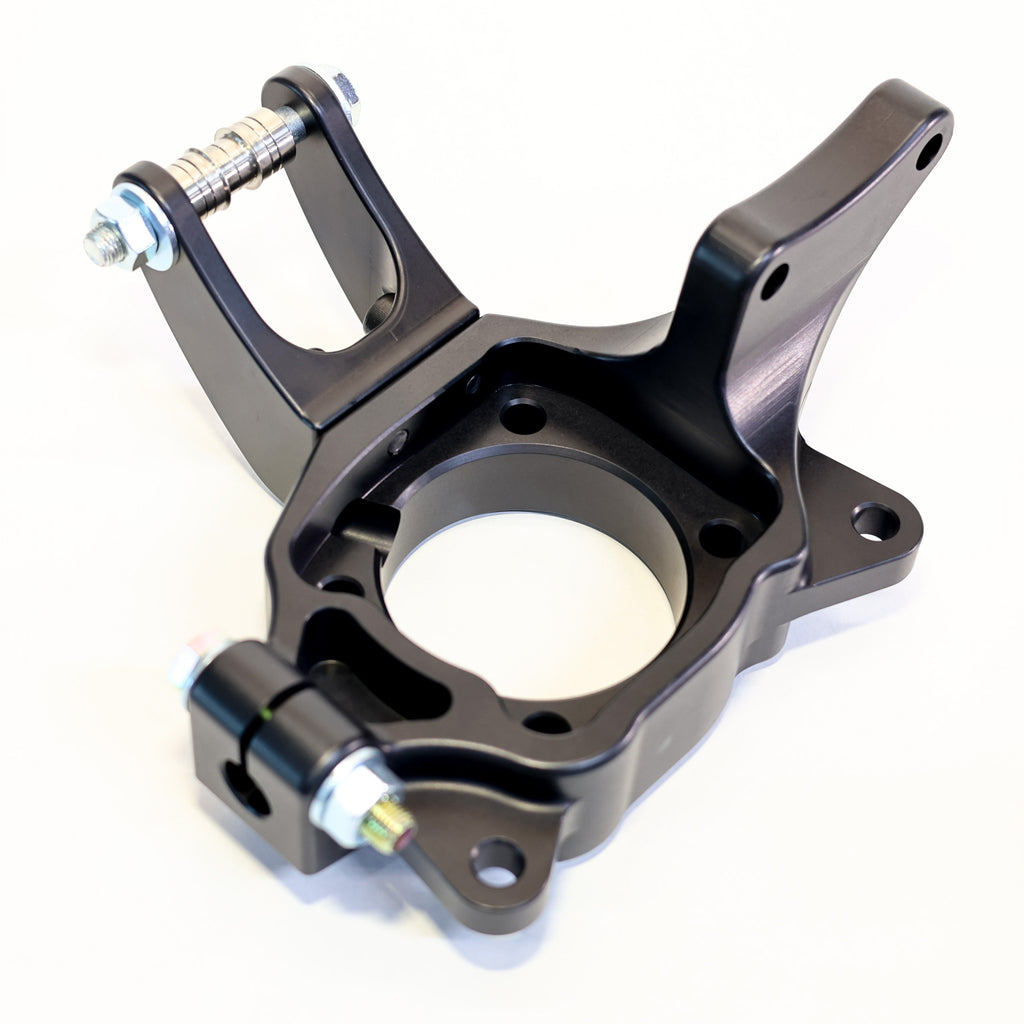

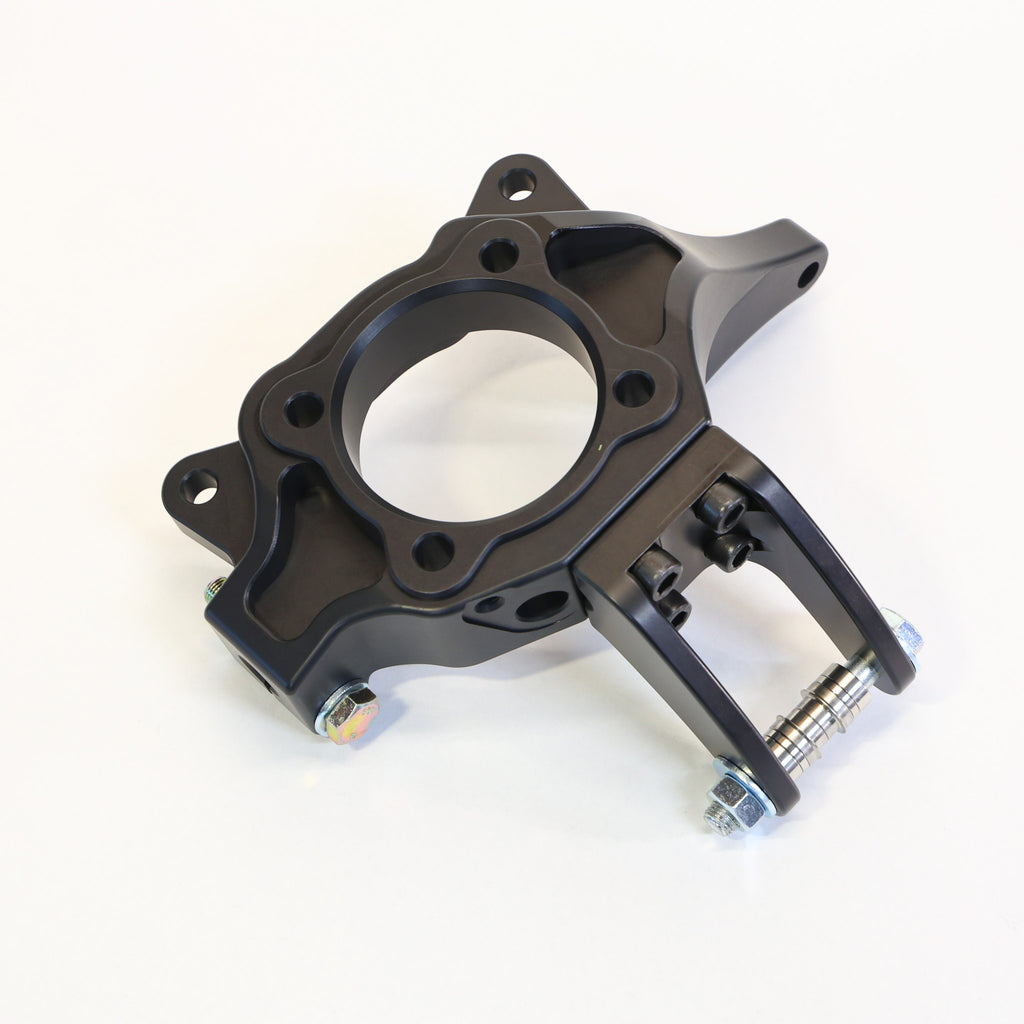

Evo IV Front Upright

  • Sale
  • Regular price $1,950.00


Applying similar treatments as the 7-X have received with some special 4/5/6 considerations.

1.5in (38mm) Roll Center Correction. Bumpsteer adjustment based around ball joint and caster changes.

There are a few specific things needed for installation.

  • This requires a swap to Evo7-9 front wheel bearings and axles.
  • The strut width is sized for standard CP9A struts at 18mm
  • Ball joint needs the Evo5 style with an 18mm post. The Evo6 uses a different style of ball joint that doesn't work.
    • We may have a solution for that, but its not available yet.
  • It may be necessary to trim the steering arm rod depending on your situation. The length of the arm may stub against the rod end blocking adjustment but I can not get the rodend any shorter.
    • The steering mount point position is also important and cant be pushed outward without altering Ackerman any further.
